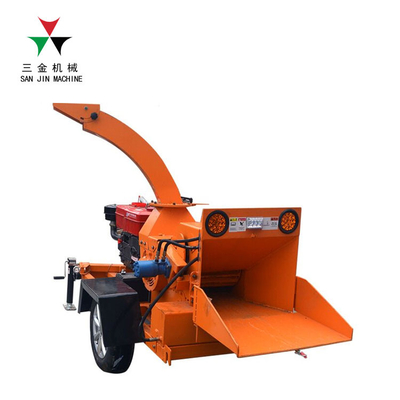

Crush Wood Branches Design Reasonable Low Price Agriculture Waste Chipper Blades Wood Processor Crusher Machine With Diesel Engine

1 Set
MOQ
$3,600.00(>=1 Sets)
Price
Crush Wood Branches Design Reasonable Low Price Agriculture Waste Chipper Blades Wood Processor Crusher Machine With Diesel Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 3 Years
Core Components: Engine, Motor
Voltage: 380V,50HZ,Customized
Power: 32hp
Dimension(L*W*H): 2.2*1.6*1.8M
Warranty: 3 Years
Key Selling Points: Easy To Operate
Applicable Industries: Manufacturing Plant, Farms, Home Use
Showroom Location: Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Thailand, Morocco, Kenya, Sri Lanka, Malaysia, Australia
Weight (KG): 800
Name: Wood Shredder Crusher Machine
Keywords: Tree Branch Crusher Machine
Usage: Wood Crusher
Application: Crush Wood Branches
Capacity: 1-2T/H
Final Product: 2-15mm Wood Power
Spare Parts: Hammer Blades
Suitable For: Wood Powder Directly
Color: Customerized
Advantage: Large Capacity Automatic
Basic Infomation
Payment & Shipping Terms
Packaging Details: wood box of Reasonable design low price wood branches agriculture waste chipper blades processor crusher machine withe diesel engine
Supply Ability: 8 Set/Sets per Month
Product Description

Reasonable design low price wood branches agriculture waste chipper blades processor crusher machine withe diesel engine

THE TECHNICAL PARAMETERS
Model
300
500
Electricity motor power
22-40kw
55kw
Diesel engine power
32-54HP
120HP(4105 diesel engine)
Diesel start up type
Electricity
Electricity
Output capacity
1-2T/H
5-7T/H
Output size
2-15mm
2-15mm
Max. diameter of raw material
120mm
250mm
Inlet feeding size
310*180mm
460*380mm
Feeding system
Hydraulic automatic feeding
Hydraulic automatic feeding
Rotating Speed (r/minute)
2500rpm
2500rpm
Number of blades
5PCS (4pcs moving knives and 1pcs fixed knives)
5PCS (4pcs moving knives and 1pcs fixed knives)
Thickness of blade
10mm
10mm
Fuel consumption
3L/H
10L/H
Dimension
2.3*1.25*1.65m
4.2*2*2.6m
Weight
750kg
2200kg
Product Description
The Discharge Port:
Discharge height：360 degree adjustable steering, discharge outlet baffle design can flexibly control the range.
Intelligent Feed System:
Equipped with hydraulic intelligent feed system, when the feed diameter is greater than a certain value, the feed system starts pulse feed cutting, effectively prevent the material to rebound outward, to ensure the smooth operation of diesel engine, greatly improve the operator's safety and branch chip efficiency. Reduce manual and improve the grinding efficiency.
In addition,Feed roller can be reversed to prevent wood stuck cutter head.
Diesel or Motor Drived:
Electric start, central control integrated operation, save labor, Emergency stop button is designed around feeding mouth to ensure operator safety. The engine is available in diesel and electric, with wheels for more mobility, more convenient.
Details Images
MORE DETAILS
The discharge port can be rotated 360 degrees
One button start and emergency stop switch
Diesel/motor drived, 300 model with 12V battery +12V generator, please consult the seller for details
Safety warning lamp, intelligent feeding,
hydraulic forced feeding, large feeding mouth.
Portable and mobile diesel type.
Suitable for outdoor work and loading efficiency.
Blade is not easy to wear,
no screen mesh.
RAW MATERIALS
The wood crushers are for grinding the Biomass like straw, coconut shell , stalk and wood chip, tree branch and forest waste to be powder of less than 3-5mm, which is right size before pellets or briquette. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all.
Wood Log
Straw
Fresh branches
THE FINAL PRODUCTS
WIDE APPLICATION
This machine is mainly used in garden construction, garbage classification, nursery, park, farm, orchard, forest and so on. It adopts dragging and hanging design, can be dragged and hung by truck, the crushed materials are directly sent to the back of the truck, greatly reducing the transportation cost.
Forest Farm
Green Belt Trim
Grape Orchard
Garden Pruning
Farm
Breeding Base
OTHER SUPPORTING PRODUCTS

1.What is the main material of this machine ?

It used to crush wood branches, wood logs, bamboo, straw, coconut shell , stalk and wood chip, tree branch and forest waste etc.

2.What is the finished product?

The output of this machine is very high, it can reach 1-10T per hour. The finished product is wood chips of various sizes, and the size of wood chips can be adjusted.

3.What are the main applications of this machine?

.It is suitable for fruit farm, forest farm, tea factory, nursery, garden, etc. The wood crusher is also suitable for parks, schools, enterprises, urban communities, branches, branches, leaves crusher, it can be used for edible mushroom substrate.

4.What are the advantages of this shredder?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

5.What vulnerable parts does the machine have?

Blades and belts. Beyond that, nothing else.
