Diesel engine powered wood chipper sawdust chipper homemade wood chipper

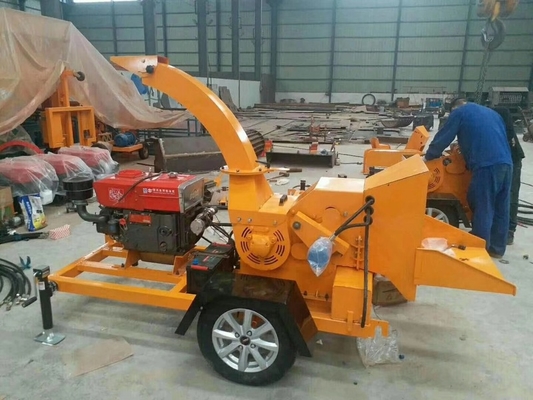

This Diesel engine mobile wood chipper is widely used in the processing of wood scraps, large-scale material crushing of branches and trees, and it is specially designed for the movable trunking equipment of tree trunks under the trim of large farms and gardens, which is convenient for field mobile operations.
The diesel engine wood chipper is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes, such as wood pellet, charcoal, etc. And the using value can reach to the maximum and the environmental pollution can be reduced.
|
Model |
BR-6130 |
BR-6145 |
BR-6160 |
|
Cutter Drum Diameter |
300 mm |
500 mm |
800 mm |
|
Power |
32HP/22 kw |
102HP/75kw |
150HP/110KW |
|
Engine Start |
Electric Start |
Electric Start |
Electric Start |
|
Speed rpm |
260 |
1800 |
1400 |
|
Knife ( pcs ) |
3 |
4 |
6 |
|
Knife Length (mm) |
300 |
230 |
200 |
|
Feed Press Roller Dia. |
280 mm |
600 mm |
800 mm |
|
Inlet Size (mm) |
300*200 |
450*380 |
600*540 |
|
Discharge Direction |
360° |
360° |
360° |
|
Capacity |
1-2t/h |
3-5t/h |
5-8t/h |
|
Max Feed Diameter: |
15cm |
20cm |
30cm |
Garden branches chipper machine advantages
1.The machine is movable type so you can start work at any time in any place
2.Feed roller is made of alloy steel, ensuring the durability in the feeding process. Special tooth can tightly press materials, ensuring uniform and continuous feeding in material transport avoiding skid phenomenon.
3.High volume discharge chute. Adjustable chip deflector.
4.EASY SWIVEL DISCHARGE CHUTE--360 degrees of rotation allows you to swivel the discharge chute so that you can direct the chips into the back of a truck or trailer without having to move the entire machine. Simply push down on the handle and swing the chute.
5.WIDE FOOTPRINT SKID TYPE SUPPORT BASE prevent the machine from sinking into the soft ground during operation
6.ADJUSTABLE CHIPPER BASE LEGS will help accommodate a larger variety of tractors.
7.The in-feed hopper on the wood chippers is horizontal and approximately table height for easy material loading.
8.The clear vinyl baffle feature protects the user from chip blow-back, while allowing the user to see what is going on in the hopper.
9.MACHINE ARE EQUIPPED WITH TWO TAILLIGHTS AND ONE GENERAL LIGHTING. You can work even at night.
10.Machines are 90% assembled on delivery
